Machine Tool Spindle Bearings: How To Optimize Your Machinery
Introduction
The spindle bearings are pivotal components that determine the overall machining precision and performance of machine tools. They are tasked with enduring cutting forces and heavy loads while maintaining the spindle’s high-precision rotation and dynamic rigidity, especially under high-speed conditions.
Quality spindle bearings play a crucial role in minimizing both radial and axial displacements of the spindle, ensuring the high precision of workpiece dimensions and surface roughness.
Robust load-bearing capacity and rigidity enable spindle bearings to withstand higher cutting forces, thereby enhancing the machine tool’s cutting power and depth.
High-performance spindle bearings, by reducing power losses, enable higher spindle speeds, consequently boosting production efficiency.
What Are Spindle Bearings

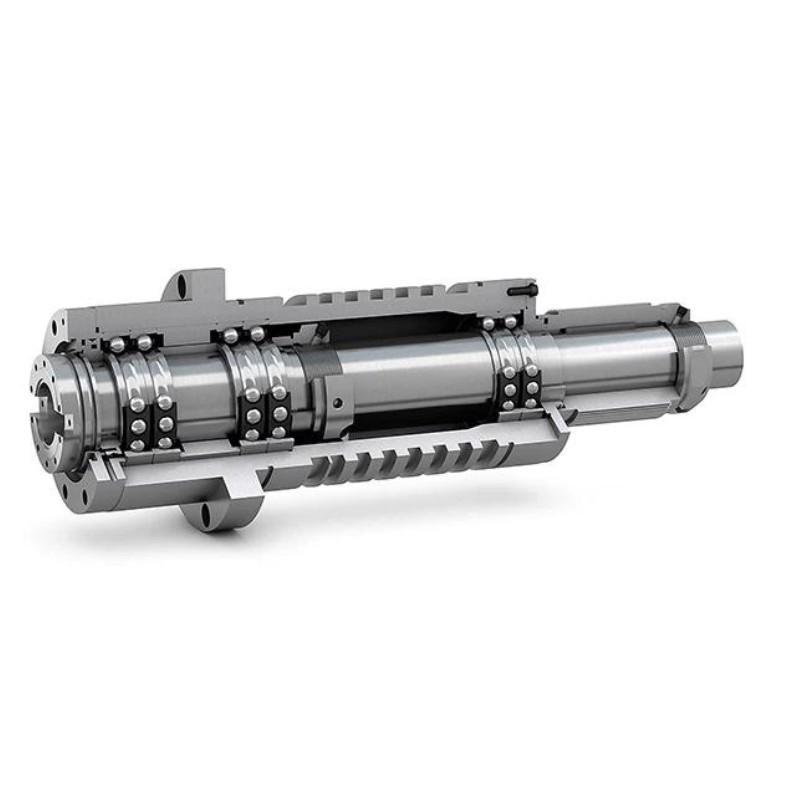

Spindle bearing refers to a special bearing installed on the machine tool spindle, used to support and guide the high-speed rotation of the spindle. Typically used in equipment such as CNC machine tools, drill presses, lathes, milling machines and grinders. The spindle is the central axis that holds the cutting tool or workpiece during processing such as milling, drilling or grinding.
Spindle bearings are important components that support the smooth and precise operation of machine tool spindles, ultimately affecting the quality and efficiency of machining processes in various industrial applications.

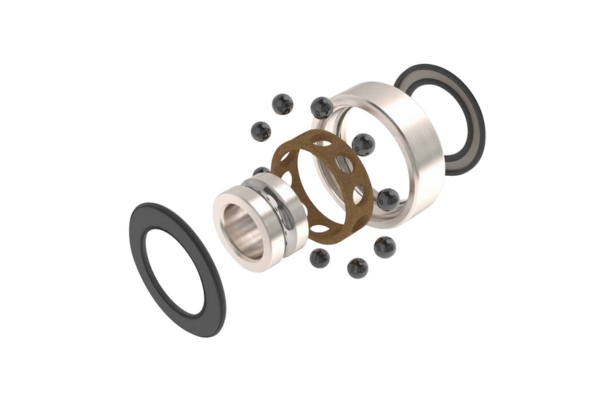

The assembly of spindle bearings usually consists of the following key components;
- Inner and outer rings: The inner ring is installed on the spindle, while the outer ring is usually installed in the spindle box of the machine tool.
- Rolling elements: rollers or balls, which transfer load between the inner and outer rings while allowing smooth rotation.
- Cage: It maintains the proper spacing and alignment of rolling elements, preventing them from contacting each other and ensuring even load distribution.
- Seals: Help protect the inside of the bearing from contamination by dust, debris or coolant.
Additionally, as for spindle bearing sizes, there are a variety of sizes to suit different spindle designs, load requirements, and operating conditions.
- Bore diameter: The inner diameter of the bearing determines the size of the spindle it can accommodate.
- Outside diameter: The diameter of the outer ring, corresponding to the housing size within the machine tool.
- Width: The thickness of the bearing assembly, which determines the space required within the spindle housing.
- Load Rating: These specifications indicate the maximum radial and axial load that a bearing can withstand without permanent deformation or failure.
Spindle Bearings Types For Machine Tool Applications
In machine tool applications, spindle bearings are the key to ensuring accuracy and reliable performance. Understanding the various types of spindle bearings and their advantages is critical to selecting the option that best suits your specific operating requirements.

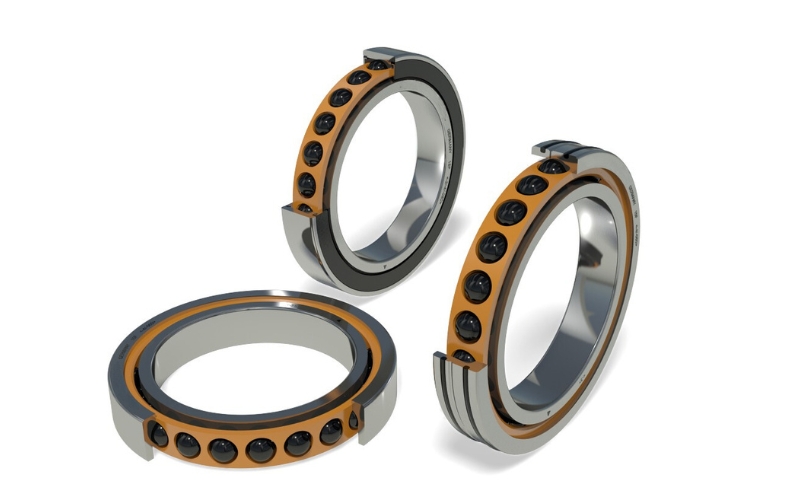

1 . Angular contact ball bearings
Angular contact ball bearings are the most widely used bearings on machine tool spindles.
Advantage:
- It can withstand large radial and axial loads at the same time, meeting the needs of the spindle to withstand compound loads during cutting.
- Double-row or four-row design can be adopted to further improve the carrying capacity.
- The contact angle design gives it good rotational rigidity and anti-torsion ability
- High precision level, movement accuracy can reach 1 micron level
- Hybrid ceramic or full ceramic materials can be used to obtain higher wear resistance and ultra-long service life
2. Radial or deep groove ball bearings
Also called single row deep groove ball bearings
Advantage:
- Simple structure and low cost
- Suitable for applications with mainly radial loads
- It has good high-speed performance and the speed can reach tens of thousands of rpm.
- Low maintenance requirements
- Usually used as the primary support bearing of the spindle
3. Roller bearings
Roller bearings include cylindrical roller bearings and tapered roller bearings
Advantage:
- High radial and axial load-carrying capacity
- Compact structure, adaptable to limited installation space
- Higher rigidity, suitable for withstanding shock loads and vibrations
- Used in heavy-duty machining centers and special processing machine tools
4. Thrust ball bearings
Thrust ball bearings are a type of bearing that can only bear axial load.
Advantage:
- Can withstand huge one-way or two-way thrust
- High bearing capacity and compact size
- Small rotational resistance and smooth rotation
- Usually used together with other radial bearings
- Meet the high thrust requirements of the spindle during heavy cutting
Factors Affecting Bearings Selection For Machine Tool Spindle
For the selection of machine tool spindle bearings, multiple influencing factors need to be comprehensively considered to ensure that the bearings can meet demanding requirements such as high speed, high precision and high reliability.
The main factors include:
- Processing accuracy requirements
The accuracy level of the spindle bearing directly affects the machining accuracy of the machine tool. Precision CNC machine tools have extremely high requirements for the motion accuracy of bearings, and usually require the use of high-precision angular contact ball bearings of P4 level or higher.
- Spindle speed
There are great differences in the maximum rotation speed of different machine tool spindles, ranging from several thousand to one hundred thousand revolutions per minute. High-speed spindles place higher requirements on the high-speed performance and temperature rise characteristics of bearings, often requiring the use of hydrodynamic bearings or ceramic bearings.
- Carrying capacity requirements
During the cutting process, the spindle needs to bear complex radial and axial loads.
For heavy cutting operations, it is necessary to select roller bearings with sufficient static and dynamic load-bearing capacity or angular contact ball bearings with multi-row design.
- Processing conditions
Different processing conditions have different requirements for bearing performance. If shock loads or vibration effects are present, roller or cylindrical bearings with higher rigidity are required.
- Structural dimensions and layout
The model selection of spindle bearings is also limited by the installation space. Sometimes it is necessary to use smaller models or special structural forms of bearings to accommodate compact spindle structures.
- Spindle power and cutting capabilities
The power loss caused by the spindle bearing also affects the actual cutting power of the machine tool. Bearings that generate a lot of heat may limit further increases in cutting power.
- Cost factor
High-end bearings of different types and grades are expensive, so the economics of procurement and operating costs must be weighed while meeting performance requirements.
Spindle Bearings Design And Characteristics
Characteristics of spindle bearings：
- High-speed operation
- Extremely high rigidity and load-bearing capacity
- Excellent wear resistance
- Through precision design
- Features reliable grease and sealing system
Signs Of Spindle Bearing Replacement And How To Replace It
What Causes Spindle Bearing Failure?
Why does the failure occur? Firstly, spindle bearing failure can result from factors such as improper lubrication, contamination, overloading, misalignment, poor maintenance, high temperatures, and material defects, all of which can lead to accelerated bearing wear and eventual failure. However, if a fault is found, the bearing must be replaced in time.
Determine the signs that spindle bearings need to be replaced：
- Abnormal noise: If abnormal friction, roar, or other noises occur when the spindle is running, it may be a sign of bearing damage or poor lubrication.Need timely replacement.
- Increased vibration: When the bearing is worn or loses correct preload, it will cause the spindle vibration to increase, affecting the machining accuracy.
- Abnormal temperature rise: Due to internal failure of the bearing or failure of the lubrication system, the spindle temperature may rise abnormally.
- Decreased accuracy: As the bearings wear, the spindle’s movement accuracy and repeatable positioning accuracy will gradually decrease.
- Visible damage: Check the bearings for expiration of life or visible wear, pitting or discoloration on the surface.
Steps to correctly replace spindle bearings:
- Preparation work: Stop the machine for inspection, take measures to prevent dust and pollution, and prepare the required tools and new and old bearings.
- Disassemble the spindle box: Disassemble the spindle box and related components according to the standard procedures, and operate carefully to avoid damage.
- Disassemble the old bearing: Use appropriate methods to remove the old bearing from the main shaft, such as heating or hydraulic equipment.
- Check the spindle bearing seat: carefully clean the surface of the bearing seat, check for damage, and reprocess and repair it if necessary.
- Install new bearings: Correctly install new bearings that meet the requirements, and adopt appropriate preloading or preloading methods according to the bearing type.
- Assemble the spindle box: Carefully reinstall the spindle box and other components, replacing new seals if necessary.
- Inject lubricant: Inject an appropriate amount of high-quality grease or oil into the newly replaced bearing.
- Trial run inspection: Gradually accelerate to normal speed, and check for any abnormalities such as noise, vibration, etc. Perform dynamic balance correction on the spindle to ensure qualified accuracy.
Strategies For Optimizing Machine Tool Spindle Bearings
The optimization strategy of machine tool spindle bearings requires the comprehensive application of correct lubrication technology and high-quality lubricant selection, high-precision installation and alignment operations, advanced materials and surface coating technologies, and predictive maintenance concepts based on big data to fundamentally improve the load-bearing capacity of bearings. capabilities, accuracy levels, environmental adaptability and service life, comprehensively enhancing the overall performance of the bearing system and winning lasting high-precision and efficient machining capabilities for machine tools.
References
- 1. Detailed information on how to replace the “spindle bearings” from Hstspindles Company
- 2.” Spindle Bearings“: How to Reach Optimal Speed and Accuracy from BMC Bearing ;
- 3 .What to know about “spindle bearings” lubrication from FPS Company
